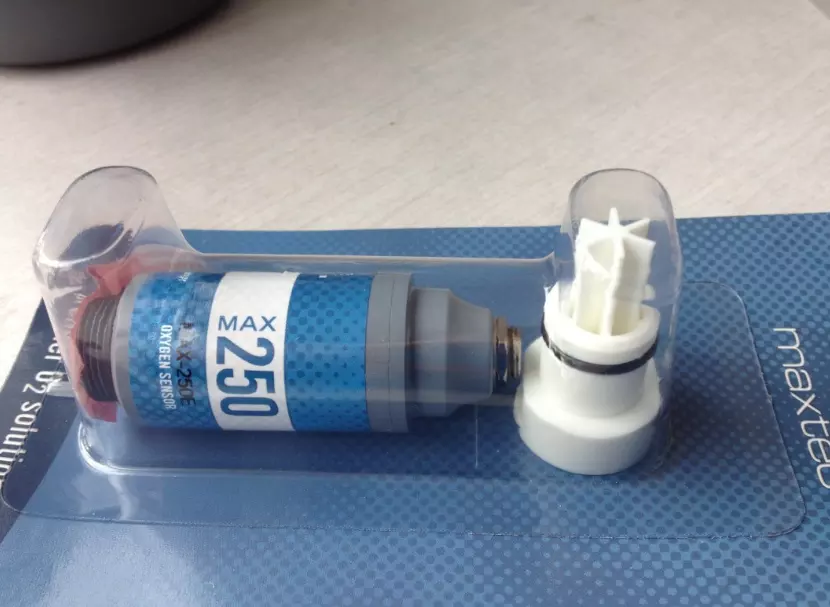

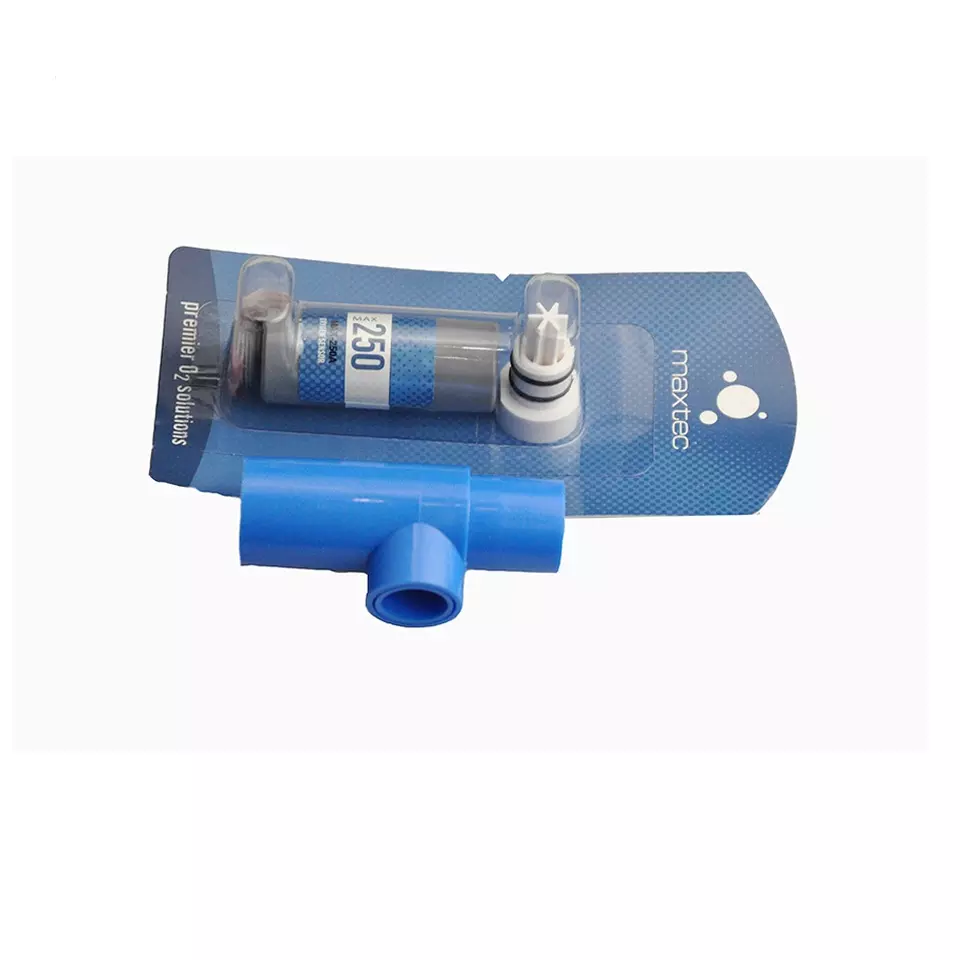

MAX-250B Oxygen Sensors for Maxtec

Measuring range: 0-100%
Working life: 1500 000% hours, about 8 years in the atmosphere
Output: 10 to 15.5 mV
Zero voltage: less than 0.5 mv
Resolution: < 0.1%
Temperature range: 5 ℃ to 40 ℃
Pressure range: 0.5 to 1.5 ATM
Response time <15S (for 90%), <25S (for 97%)
Filter gas: filter CO, CO2, H2, H2S, SO2, NO and other gas interference
Recommended load value:> 1MΩ;
Accuracy: ± 1% (normal temperature and pressure), ± 2% (full range temperature range)
Storage temperature: 15 ℃ to 50 ℃
Sampling port:: M16X1 thread
